Z8F0431QJ020SG IC MCU 8BIT 4KB FLASH 28QFN Zilog

Sanhuang electronics (Hong Kong) Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Z8F0431QJ020SG IC MCU 8BIT 4KB FLASH 28QFN Zilog

Brand Name : Zilog

Model Number : Z8F0431QJ020SG

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : eZ8

Core Size : 8-Bit

Speed : 20MHz

Connectivity : -

Peripherals : Brown-out Detect/Reset, LED, POR, PWM, WDT

Number of I/O : 25

Program Memory Size : 4KB (4K x 8)

Program Memory Type : FLASH

EEPROM Size : -

RAM Size : 256 x 8

Voltage - Supply (Vcc/Vdd) : 2.7V ~ 3.6V

Data Converters : -

Oscillator Type : Internal

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 28-VQFN

Supplier Device Package : -

Contact Now

Product Details

Overview

Zilog’s Z8 Encore! MCU family of products are the first in a line of Zilog microcontroller products based upon the 8-bit eZ8 CPU. Zilog’s Z8 Encore! XP F082A Series products expand upon Zilog’s extensive line of 8-bit microcontrollers. The Flash in-circuit pro gramming capability allows for faster development time and program changes in the field. The new eZ8 CPU is upward compatible with existing Z8 instructions. The rich peripheral set of the Z8 Encore! XP F082A Series makes it suitable for a variety of applications including motor control, security systems, home appliances, personal electronic devices and sensors.

Features

The key features of Z8 Encore! XP F082A Series products include:
• 20 MHz eZ8 CPU
• 1 KB, 2 KB, 4 KB, or 8 KB Flash memory with in-circuit programming capability
• 256 B, 512 B, or 1 KB register RAM
• Up to 128 B nonvolatile data storage (NVDS)
• Internal precision oscillator trimmed to ±1% accuracy
• External crystal oscillator, operating up to 20 MHz
• Optional 8-channel, 10-bit analog-to-digital converter (ADC)
• Optional on-chip temperature sensor
• On-chip analog comparator
• Optional on-chip low-power operational amplifier (LPO)
• Full-duplex UART
• The UART baud rate generator (BRG) can be configured and used as a basic 16-bit timer
• Infrared Data Association (IrDA)-compliant infrared encoder/decoders, integrated
with the UART
• Two enhanced 16-bit timers with capture, compare and PWM capability
• Watchdog Timer (WDT) with dedicated internal RC oscillator
• Up to 20 vectored interrupts
• 6 to 25 I/O pins depending upon package
• Up to thirteen 5 V-tolerant input pins
• Up to 8 ports capable of direct LED drive with no current limit resistor required
• On-Chip Debugger (OCD)
• Voltage Brown-Out (VBO) protection
• Programmable low battery detection (LVD) (8-pin devices only)
• Bandgap generated precision voltage references available for the ADC, comparator,
VBO and LVD
• Power-On Reset (POR)
• 2.7 V to 3.6 V operating voltage
• 8-, 20- and 28-pin packages
• 0°C to +70°C and –40°C to +105°C for operating temperature ranges

Specifications

Attribute Attribute Value
Manufacturer Zilog
Product Category Microcontrollers
Series Encore!®
Packaging Tray
Unit-Weight 0.002497 oz
Mounting-Style SMD/SMT
Tradename Z8 ENCORE
Package-Case 28-VQFN
Operating-Temperature 0°C ~ 70°C (TA)
Supplier-Device-Package *
Number-of-I-O 25 I/O
Speed 20MHz
EEPROM-Size -
Core-Processor eZ8
RAM-Size 256 x 8
Program Memory FLASH
Peripherals Brown-out Detect/Reset, LED, POR, PWM, WDT
Connectivity -
Voltage-Supply-Vcc-Vdd 2.7 V ~ 3.6 V
Core-Size 8-Bit
Program-Memory-Size 4KB (4K x 8)
Data-Converters -
Oscillator-Type Internal
Maximum Operating Temperature + 70 C
Operating temperature range 0 C
Operating-Supply-Voltage 2.7 V to 3.6 V
Core eZ8
Data-Bus-Width 8 bit
Supply-Voltage-Max 3.6 V
Supply-Voltage-Min 2.7 V
Package-Case QFN-28
Maximum-Clock-Frequency 20 MHz
Input/output 25 I/O
Data-RAM-Size 256 B
Number-of-Timers-Counters 2 Timer
ADC-Resolution No ADC

Descriptions

eZ8 Encore!? Microcontroller IC 8-Bit 20MHz 4KB (4K x 8) FLASH
8-bit Microcontrollers - MCU 4K NO ADC NVDS

 Z8F0431QJ020SG IC MCU 8BIT 4KB FLASH 28QFN Zilog Manufactures

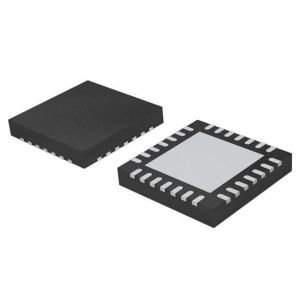

Z8F0431QJ020SG IC MCU 8BIT 4KB FLASH 28QFN Zilog Images
