CA3140AMZ IC OPAMP GP 1 CIRCUIT 8SOIC Renesas Electronics America Inc

Brand Name : Renesas Electronics America Inc

Model Number : CA3140AMZ

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : -

Slew Rate : 9V/µs

Gain Bandwidth Product : 4.5 MHz

-3db Bandwidth : -

Current - Input Bias : 10 pA

Voltage - Input Offset : 2 mV

Current - Supply : 4mA

Current - Output / Channel : 40 mA

Voltage - Supply Span (Min) : 4 V

Voltage - Supply Span (Max) : 36 V

Operating Temperature : -55°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package : 8-SOIC

Contact Now

Product Details

The CA3140A and CA3140 are integrated circuit operational amplifiers that combine the advantages of high voltage PMOS transistors with high voltage bipolar transistors on a single monolithic chip.

Specifications

Attribute Attribute Value
Manufacturer Renesas
Product Category Instrumentation Amplifier
Series CA3140A
Product Operational Amplifiers
Packaging Tube
Unit-Weight 0.019048 oz
Mounting-Style SMD/SMT
Technology BiCMOS
Number-of-Channels 1 Channel
Amplifier-Type General Purpose Amplifier
Shutdown No Shutdown
Maximum Operating Temperature + 125 C
Operating temperature range - 55 C
Operating-Supply-Current 4 mA
Supply-Voltage-Max 36 V
Supply-Voltage-Min 4 V
Package-Case SOIC-8
Ib-Input-Bias-Current 40 pA
Vos-Input-Offset-Voltage 5 mV
PSRR-Power-Supply-Rejection-Ratio 80 dB (Typ)
Output-Current-per-Channel 40 mA
CMRR-Common-Mode-Rejection-Ratio 70 dB
GBP-Gain-Bandwidth-Product 4.5 MHz
SR-Slew-Rate 9 V/us
en-Input-Voltage-Noise-Density 40 nV/sqrt Hz at +/- 15 V
Maximum-Dual-Supply-Voltage +/- 18 V
Minimum-Dual-Supply-Voltage +/- 2 V

Descriptions

General Purpose Amplifier 1 Circuit 8-SOIC
Op Amp Single GP 卤18V/36V Automotive 8-Pin SOIC N Tube
Operational Amplifiers - Op Amps OPAMP 4.5MHZ LWBIAS

CA3140AMZ IC OPAMP GP 1 CIRCUIT 8SOIC Renesas Electronics America Inc Manufactures

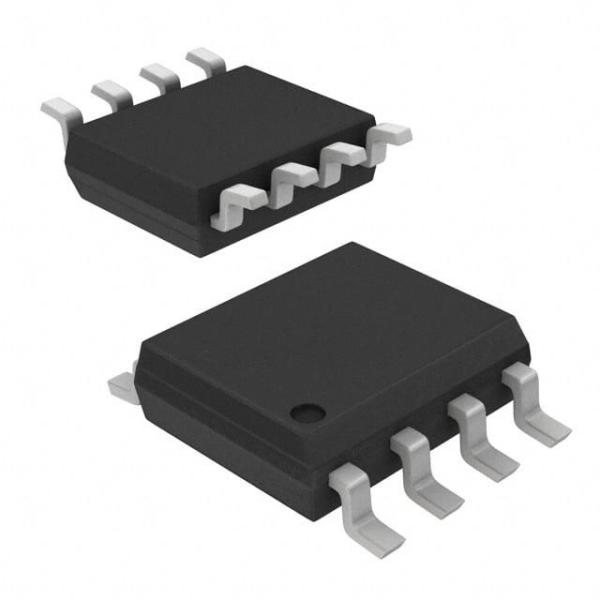

CA3140AMZ IC OPAMP GP 1 CIRCUIT 8SOIC Renesas Electronics America Inc Images
