OPA2836IDGSR IC OPAMP VFB 2 CIRCUIT 10VSSOP Texas Instruments

Name: OPA2836IDGSR IC OPAMP VFB 2 CIRCUIT 10VSSOP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : OPA2836IDGSR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : Voltage Feedback

Number of Circuits : 2

Output Type : Differential, Rail-to-Rail

Slew Rate : 560V/µs

Gain Bandwidth Product : 118 MHz

-3db Bandwidth : 205 MHz

Current - Input Bias : 650 nA

Voltage - Input Offset : 65 µV

Current - Supply : 1mA (x2 Channels)

Current - Output / Channel : 50 mA

Voltage - Supply Span (Min) : 2.5 V

Voltage - Supply Span (Max) : 5.5 V

Operating Temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Supplier Device Package : 10-VSSOP

Contact Now

Product Details

The Texas Instruments OPA2836IDGSR Instrumentation Amplifier is a voltage feedback, surface-mount and very small size outline package (VSSOP-10) device designed to deliver excellent dc and ac performance. This versatile amplifier is ideal for those applications with low offset, low noise and low drift requirements, like sensor interfacing, measurement, and industrial control. The OPA2836 offers a 65 µV of maximum voltage offset and a 4MHz of GBP. It boasts 37 V/μs of slew rate, 1. 6 nV/√Hz of voltage noise, and -92 dB of CMRR. Moreover open loop gain is up to 130 dB, with a 6 V/µs slew rate and a 15 nA quiescent current. Features like a wide voltage range (±2.7V to ±16.5V) and excellent common-mode rejection allow the OPA2836 to also be used in demanding applications such as medical, automotive, and communications. Additionally, the device is protected with 2.5 kV ESD, it has a guaranteed temperature stability, and operating temperature range from -40°C to 1 85°C. This product can be used in all kinds of projects from user feedback, medical monitoring, automated measuring systems and even satellite controlling. The Texas Instruments OPA2836IDGSR Instrumentation Amplifier is the versatile choice for ensuring excellent ac and dc performance with fast speed and low noise.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Instrumentation Amplifier
Manufacturer	Texas Instruments
Product-Category	High Speed Operational Amplifiers
RoHS	Details
Amplifier-Type	Voltage Feedback
GBP-Gain-Bandwidth-Product	205 MHz
SR-Slew-Rate	560 V/us
CMRR-Common-Mode-Rejection-Ratio	114 dB
Vos-Input-Offset-Voltage	65 uV
Maximum-Operating-Temperature	+ 125 C
Mounting-Style	SMD/SMT
Package-Case	VSSOP-10
Packaging	Reel
Brand	Texas Instruments
Product	Operational Amplifiers
Series	OPA2836
Topology	Voltage Feedback
Unit-Weight	0.000836 oz

Descriptions

Voltage Feedback Amplifier 2 Circuit Rail-to-Rail 10-VSSOP

Op Amp Dual Volt Fdbk R-R O/P 卤2.75V/5.5V 10-Pin VSSOP T/R

High Speed Operational Amplifiers Dual,Very Low Pwr RRO,Neg Rail in,VFB

OPA2836IDGSR IC OPAMP VFB 2 CIRCUIT 10VSSOP Texas Instruments Manufactures

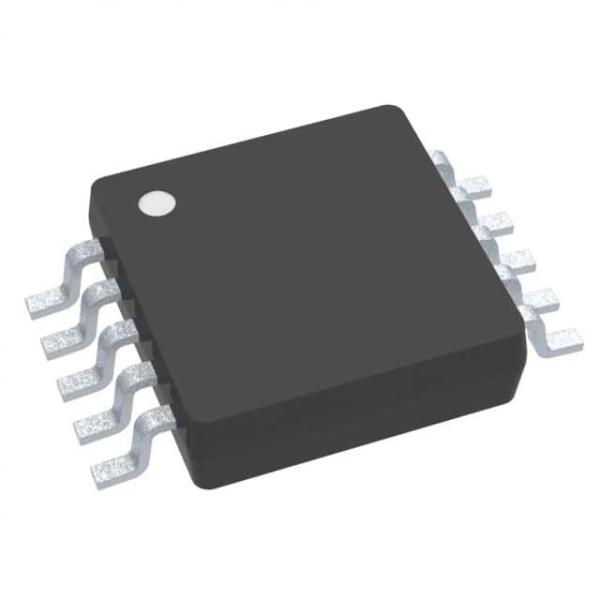

OPA2836IDGSR IC OPAMP VFB 2 CIRCUIT 10VSSOP Texas Instruments Images
