OP07CPZ IC OPAMP GP 1 CIRCUIT 8DIP Analog Devices Inc.

Name: OP07CPZ IC OPAMP GP 1 CIRCUIT 8DIP Analog Devices Inc
Brand: Analog Devices Inc.
Price: 1 USD

Brand Name : Analog Devices Inc.

Model Number : OP07CPZ

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 1

Output Type : -

Slew Rate : 0.3V/µs

Gain Bandwidth Product : -

-3db Bandwidth : -

Current - Input Bias : 1.8 nA

Voltage - Input Offset : 60 µV

Current - Supply : -

Current - Output / Channel : -

Voltage - Supply Span (Min) : 6 V

Voltage - Supply Span (Max) : 36 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Through Hole

Package / Case : 8-DIP (0.300", 7.62mm)

Supplier Device Package : 8-PDIP

Contact Now

Product Details

GENERAL DESCRIPTION

The OP07 has very low input offset voltage (75 μV maximum for OP07E) that is obtained by trimming at the wafer stage. These low offset voltages generally eliminate any need for external nulling. The OP07 also features low input bias current (±4 nA for the OP07E) and high open-loop gain (200 V/mV for the OP07E).
The low offset and high open-loop gain make the OP07 particularly useful for high gain instrumentation applications.

FEATURES

Low VOS: 75 μV maximum
Low VOS drift: 1.3 μV/°C maximum
Ultrastable vs. time: 1.5 μV per month maximum
Low noise: 0.6 μV p-p maximum
Wide input voltage range: ±14 V typical
Wide supply voltage range: ±3 V to ±18 V
125°C temperature-tested dice

APPLICATIONS

Wireless base station control circuits
Optical network control circuits
Instrumentation
Sensors and controls
Thermocouples
Resistor thermal detectors (RTDs)
Strain bridges
Shunt current measurements
Precision filters

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices
Product Category	Instrumentation Amplifier
Series	OP07
Product	Precision Amplifiers
Packaging	Tube
Unit-Weight	0.032805 oz
Mounting-Style	Through Hole
Number-of-Channels	1 Channel
Shutdown	No Shutdown
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Supply-Voltage-Max	18 V
Supply-Voltage-Min	3 V
Package-Case	PDIP-8
Ib-Input-Bias-Current	9 nA
Vos-Input-Offset-Voltage	85 uV
PSRR-Power-Supply-Rejection-Ratio	103.09 dB (Typ)
CMRR-Common-Mode-Rejection-Ratio	120 dB
GBP-Gain-Bandwidth-Product	600 kHz
SR-Slew-Rate	0.3 V/us
en-Input-Voltage-Noise-Density	10.5 nV/sqrt Hz at +/- 5 V
Voltage-Gain-dB	112.04 dB

Descriptions

General Purpose Amplifier 1 Circuit 8-PDIP

OP Amp Single GP 卤18V 8-Pin PDIP N Tube

Precision Amplifiers Ultra Low Offset VTG

OP07CPZ IC OPAMP GP 1 CIRCUIT 8DIP Analog Devices Inc. Manufactures

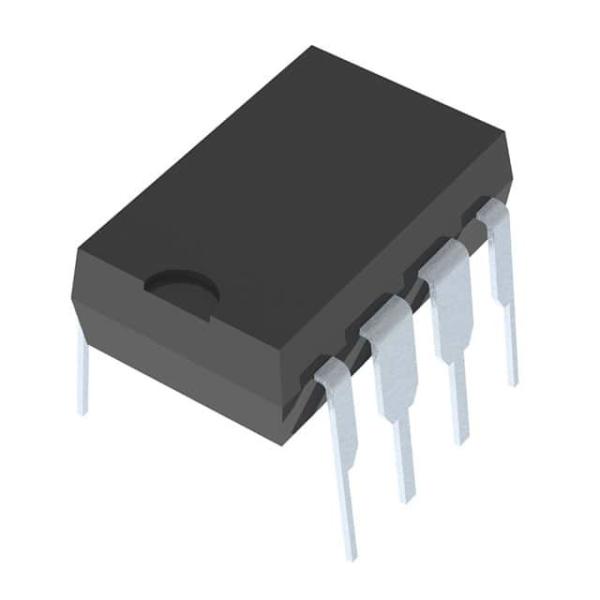

OP07CPZ IC OPAMP GP 1 CIRCUIT 8DIP Analog Devices Inc. Images
