LM324DR IC OPAMP GP 4 CIRCUIT 14SOIC Texas Instruments

Name: LM324DR IC OPAMP GP 4 CIRCUIT 14SOIC Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : LM324DR

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : General Purpose

Number of Circuits : 4

Output Type : -

Slew Rate : 0.5V/µs

Gain Bandwidth Product : 1.2 MHz

-3db Bandwidth : -

Current - Input Bias : 20 nA

Voltage - Input Offset : 3 mV

Current - Supply : 1.4mA (x4 Channels)

Current - Output / Channel : 30 mA

Voltage - Supply Span (Min) : 3 V

Voltage - Supply Span (Max) : 30 V

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 14-SOIC (0.154", 3.90mm Width)

Supplier Device Package : 14-SOIC

Contact Now

Product Details

Description

The Universal Standard family LM358 / 324 and LM2904 / 2902 monolithic ICs integrate two independent op-amp circuits and phase compensation capacitors on a single chip, feature high gain and low power consumption, and possess an operating voltage range between 3[V]and 32[V] (single power supply.)

Features

1) Operating temperature range
Commercial Grade LM358/324 family : 0[℃ ] to + 70[℃ ]
Extended Industrial Grade LM2904/2902 family : -40[℃ ] to +125[℃ ]
2) Wide operating voltage range
+3[V] to +32[V] (single supply)
± 1.5[V] to ± 16[V] (dual supply)
3) Low supply current
4) Common-mode input voltage range, including ground
5) Differential input voltage range equal to maximum ratedsupply voltage
6) High large signal voltage gain
7) Wide output voltage range

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	IC Chips
Manufacturer	ROHM Semiconductor
Product-Category	Operational Amplifiers - Op Amps
RoHS	Details
Series	LM324
Packaging	Reel
Brand	ROHM Semiconductor
Product	Operational Amplifiers
Manufacturer	Texas Instruments
Product-Category	Operational Amplifiers - Op Amps
RoHS	Details
Mounting-Style	SMD/SMT
Package-Case	SOIC-14
Supply-Voltage-Max	32 V
Output-Current-per-Channel	30 mA
Number-of-Channels	4 Channel
GBP-Gain-Bandwidth-Product	1.2 MHz
SR-Slew-Rate	0.5 V/us
CMRR-Common-Mode-Rejection-Ratio	65 dB
Ib-Input-Bias-Current	250 nA
Vos-Input-Offset-Voltage	7 mV
Supply-Voltage-Min	3 V
Operating-Supply-Current	3 mA
Maximum-Operating-Temperature	+ 70 C
Minimum-Operating-Temperature	0 C
Shutdown	No Shutdown
Series	LM324
Packaging	Reel
Amplifier-Type	High Gain Amplifier
Brand	Texas Instruments
en-Input-Voltage-Noise-Density	35 nV/sqrt Hz
Maximum-Dual-Supply-Voltage	+/- 16 V
Minimum-Dual-Supply-Voltage	+/- 1.5 V
Product	Operational Amplifiers
Technology	Bipolar
Vcm-Common-Mode-Voltage	Negative Rail to Positive Rail - 1.5 V
Unit-Weight	0.004318 oz

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
LM324DRG4 Amplifier Circuits	Quadruple operational amplifier 14-SOIC 0 to 70	Texas Instruments	LM324DR vs LM324DRG4
LM324KD Amplifier Circuits	Quadruple Operational Amplifier 14-SOIC 0 to 70	Texas Instruments	LM324DR vs LM324KD
LM324KDR Amplifier Circuits	Quadruple improved ESD protection operational amplifier 14-SOIC 0 to 70	Texas Instruments	LM324DR vs LM324KDR
LM324MX Amplifier Circuits	Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDSO14, ROHS COMPLIANT, SOP-14	ROHM Semiconductor	LM324DR vs LM324MX
LM324D Amplifier Circuits	Quadruple operational amplifier 14-SOIC 0 to 70	Texas Instruments	LM324DR vs LM324D
LM324DRG3 Amplifier Circuits	Quadruple operational amplifier 14-SOIC 0 to 70	Texas Instruments	LM324DR vs LM324DRG3
LM324DE4 Amplifier Circuits	Quadruple operational amplifier 14-SOIC 0 to 70	Texas Instruments	LM324DR vs LM324DE4
LM324DG4 Amplifier Circuits	Quadruple operational amplifier 14-SOIC 0 to 70	Texas Instruments	LM324DR vs LM324DG4
LM324M Amplifier Circuits	Operational Amplifier, Single Supply, Quad, 4860-TUBE	ON Semiconductor	LM324DR vs LM324M
LM324DRE4 Amplifier Circuits	Quadruple operational amplifier 14-SOIC 0 to 70	Texas Instruments	LM324DR vs LM324DRE4

Descriptions

General Purpose Amplifier 4 Circuit 14-SOIC

Op Amp Quad GP 卤16V/32V 14-Pin SOIC T/R

Operational Amplifiers - Op Amps Quad GP Op Amp

LM324DR IC OPAMP GP 4 CIRCUIT 14SOIC Texas Instruments Manufactures

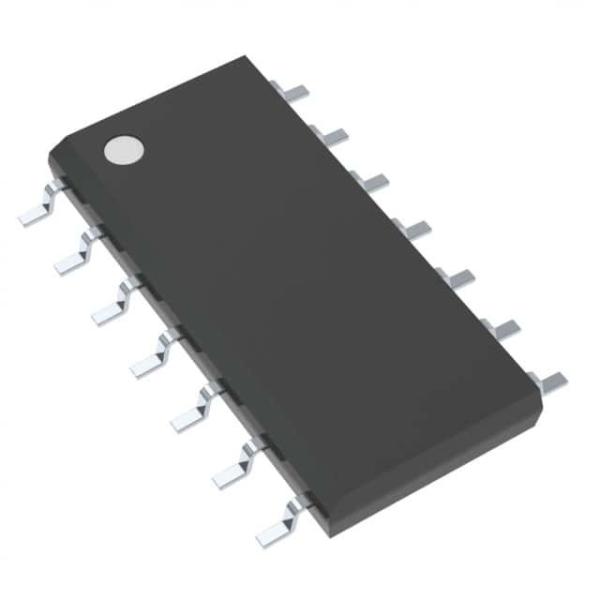

LM324DR IC OPAMP GP 4 CIRCUIT 14SOIC Texas Instruments Images
