ISL24021IRT065Z-T7A IC VOLTAGE FEEDBACK 1 CIRC 8TDFN Renesas Electronics America Inc

Brand Name : Renesas Electronics America Inc

Model Number : ISL24021IRT065Z-T7A

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : Voltage Feedback

Number of Circuits : 1

Output Type : Rail-to-Rail

Slew Rate : 19V/µs

Gain Bandwidth Product : -

-3db Bandwidth : 27 MHz

Current - Input Bias : 2 nA

Voltage - Input Offset : 1.4 mV

Current - Supply : 2.2mA

Current - Output / Channel : 300 mA

Voltage - Supply Span (Min) : 4.5 V

Voltage - Supply Span (Max) : 19 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

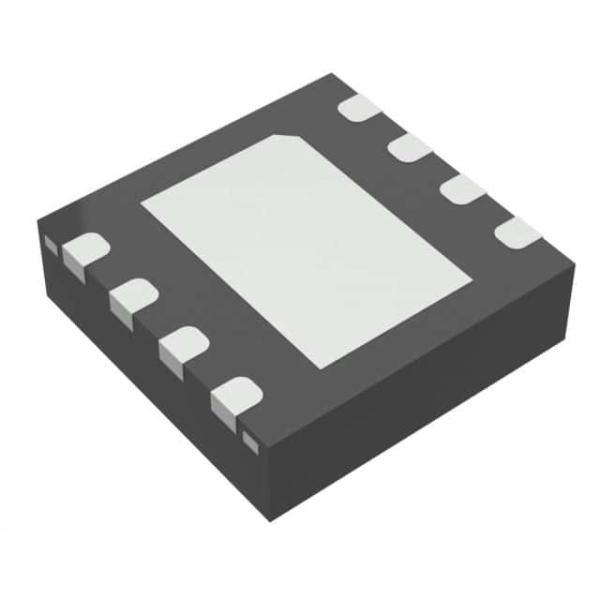

Package / Case : 8-WDFN Exposed Pad

Supplier Device Package : 8-TDFN (3x3)

Contact Now

Product Details

1A Rail-to-Rail Input-Output Operational Amplifier

The ISL24021 is a high output current, high voltage, rail-to-rail voltage feedback amplifier. The ISL24021 is capable of ±1A peak output short circuit current. The amplifier exhibits beyond the rail input capability, rail-to-rail output capability and is unity gain stable.

Features

• ±1A Output Short Circuit Current
• 4.5V to 19V Maximum Supply Voltage Range
• 2.0mA Supply Current
• 18V/µs Slew Rate
• 25MHz -3dB Bandwidth
• ±300mA Continuous Output Current
• Unity-Gain Stable
• Beyond the Rails Input Capability
• Rail-to-Rail Output Swing
• Built-in Thermal Protection
• -40°C to +85°C Ambient Temperature Range
• Pb-Free (RoHS Compliant)

Applications

• TFT-LCD Panels
• VCOM Driver
• Video Processing
• Audio Processing
• Active Filters
• Test Equipment
• Battery-Powered Applications
• Portable Equipment

Specifications

Attribute Attribute Value
Manufacturer Renesas
Product Category Instrumentation Amplifier
Series ISL24021
Product Operational Amplifiers
Packaging Reel
Mounting-Style SMD/SMT
Shutdown Shutdown
Package-Case TDFN-EP-8

Descriptions

Voltage Feedback Amplifier 1 Circuit Rail-to-Rail 8-TDFN (3x3)
Op Amp Single Volt Fdbk R-R I/O 19V 8-Pin TDFN EP T/R
Operational Amplifiers - Op Amps ISL24021IRTZ 1AMP OU TPUT CUR SNGL RRIO

ISL24021IRT065Z-T7A IC VOLTAGE FEEDBACK 1 CIRC 8TDFN Renesas Electronics America Inc Manufactures

ISL24021IRT065Z-T7A IC VOLTAGE FEEDBACK 1 CIRC 8TDFN Renesas Electronics America Inc Images
